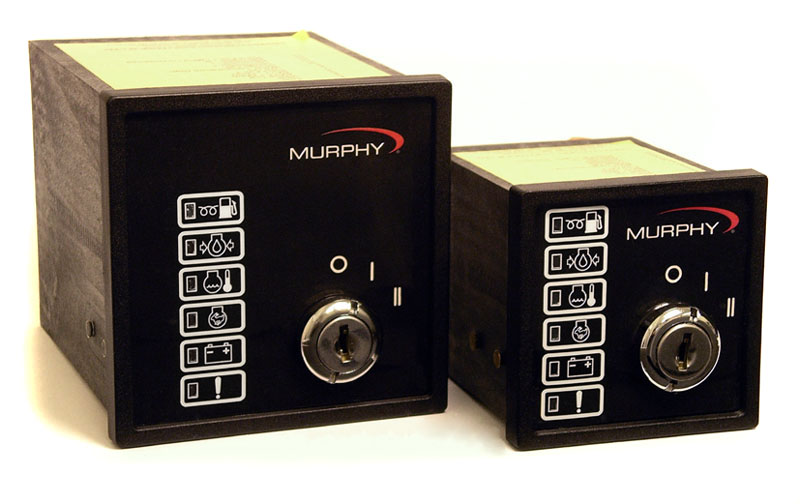

The Keystart range provides manual start/stop and automatic fault protection for generators, pumps and other engine-driven applications:

• Simple, compact design
• 92 x 92 mm or 68 x 68mm
  DIN panel cut-out
• Security keyswitch
• Fuel, starter and timed preheat control outputs
• LED and icon indication of preheat, fuel on and fault conditions
• Overspeed shutdown option, with link-selectable input source
  (magnetic pickup or AC generator)

May 2008: New Keystart 9620 series launched

The new 9620 series supersedes the 9610 series, with a more compact case, easier panel mounting and quick-connect terminals, plus a choice of keyswitch options.

Base Keystart models are:

	no overspeed	AC/MPU overspeed
NEW! DIN 96mm case	KEY9620	KEY9621
DIN 72mm case	KEY7210	KEY7211

tel:	+44 (0)1722 410055
fax:	+44 (0)1722 410088
email:	sales@enovationcontrols.eu

For further technical information or application advice, send us an email, or call our engineers

---

Keystart 9000, 9600, 9700, 7201 series

These Keystart models were superseded in July 2005 by the Keystart 7210 / 9610 series, but some of the older design units may remain in stock - please contact our sales engineers for details of stock availability or nearest equivalent units. For technical information on these older units, please visit our PDF literature index.
