Murphy engine control panels are designed for industrial, agricultural, mobile equipment and marine applications. We offer standard and custom panel solutions, designed and built by Enovation Controls in Europe and in our USA Industrial Panel Division.

Enovation Controls have expertise in all aspects of engine control technology, including the SAE J1939 protocol for CAN networks used at the heart of most modern industrial diesel engines. Our MurphyLink® and PowerView® displays, gauges and input/output devices provide OEMs and users with plain-language and graphical display data and diagnostics for the latest ECU/CAN-based engines. These components are used throughout the Murphy range of full-panel solutions, complemented by wire harnesses for seamless 'plug-and-go' connection to your engine. We also continue to offer a wide range of panels and harnesses for non-ECU 'mechanical' engine applications.

The latest range of Murphy PowerCore® controllers and panels gives new levels of configurability, usability and durability. They work with both ECU/CAN-based and non-ECU engines, delivering standardized control solutions across transitioning or mixed engine fleets.

Click on the links below for further product information, or contact our engineers to discuss your industrial panel requirements.

In this section:

CAN J1939 panels, for electronic ECU-based engines:

TEC-10
A configurable engine/equipment panel, common functionality with the PowerCore® MPC-10 controller. Works with both ECU/CAN-based and non-ECU engines.

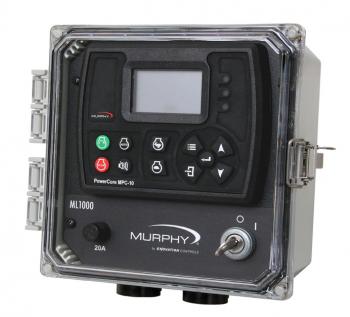

ML1000
A configurable engine/equipment panel based on the PowerCore® MPC-10 controller. Works with both ECU/CAN-based and non-ECU engines.

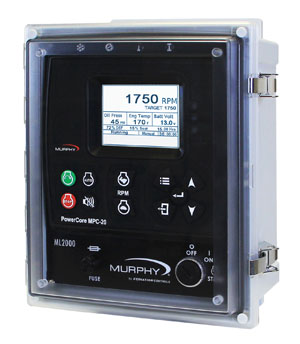

ML2000
A range of configurable engine/pump panels based on the PowerCore® MPC-20 controller. Works with both ECU/CAN-based and non-ECU engines.

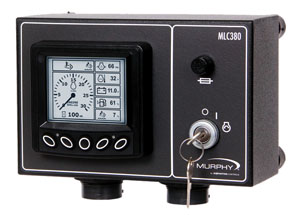

MLC380
Manual start/stop panel based on the PowerView® PV380 display. Works with both ECU/CAN-based and non-ECU engines.

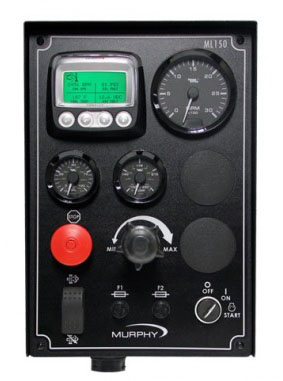

ML25, ML50, ML100, ML150, ML300
ML series panels for ECU/J1939-based industrial stationary engines

MIH series
Wiring Harnesses for ML series panels, standard solutions for major engine types

EMS PRO
Auto start/stop control & fault protection for ECU (J1939) or non-ECU stationary pumps

Mechanical engine panels, Murphy Europe range:

Panel comparison chart >

B6468
Manual start/stop control and auto fault protection for non-ECU Perkins 400 / Caterpillar 1.1/2.2 stationary engines

B4111, B5001, B0188
33.400.689-based control panels for irrigation hosereel applications

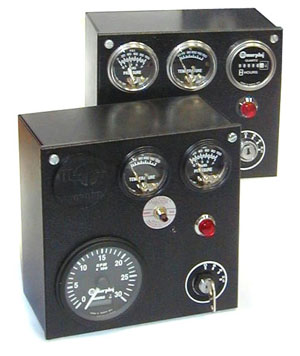

Diagnostic Centres
General purpose, manual start/stop engine control panels with a range of instrumentation levels

WD100/WD270 series
General engine, pump and mobile equipment instrumentation and protection.

Mechanical engine panels, USA Industrial Panel Division range:

IPD website (www.murphybyenovationcontrols.com/ipd)

W0156 / W0169
Swichgage shutdown panel kits.

W0168 / W0241
Swichgage shutdown panel kits.

W0270
Compact, low profile shutdown panel kits for Caterpillar, Perkins and Detoit Diesel engines

WAI Series
Swichgage shutdown panels for mobile equipment of all kinds.

WD300 Series
General purpose diesel engine protection panel with open back.

WDU Series
Electric gauge shutdown panels for Deutz 1011/2011, 912/913 and 914.

WHB Series
Swichgage shutdown panels for high plains and other irrigation engines.

TL7 / SAH Series
Flasher alarm light and Mini-Siren
