Off-Highway Vehicles & Equipment:
Agricultural & Forestry

Within the agricultural industry, Murphy controls and instruments are justly famous for their reliablity and long life. Whether it's our latest displays and engine controllers, or traditional Swichgage® devices and irrigation pump diagnostic centres, Murphy equipment is designed to operate time and time again in all weathers and conditions.

Murphy equipment provides control, monitoring and protection for a range of diesel-driven applications: tractors, specialist farm vehicles, PTO devices and pumping. Murphy hose-reel and drip irrigation pump controls are distributed through a network of specialist distributors, each of which has has in-depth experience of irrigation and pumping systems, and has received training in Murphy products.

For further information, click on the product links below, or contact your local irrigation controls distributor for advice.

Displays and Controls for ECU/CAN-based vehicles and equipment
These display and controls are compatible with the CAN SAE J1939 communication system, as used in virtually all the latest industrial diesel engines meeting Tier4/Stage IV exhaust emission regulations; many can also be configured for other CAN-based systems, or non-ECU/CAN engines. All are built to last, with class-leading environmental protection, operating temperature and vibration/shock specs, allowing use both inside and outside the cab:
	PowerView® Configurable Displays. Colour and monochrome displays, freely configurable to your machine and application requirements.

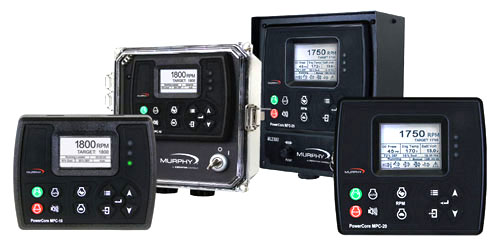

	PowerCore® Controllers and Panels Configurable control modules and full panel/harness solutions for engine-driven stationary or trailer-mounted equipment: pumps, compressors, shredders/chippers or power packs.
	CAN I/O modules - fully sealed devices for seamless integration of sensors, switches, actuators and drives into CAN-based engine and vehicle display and control systems.

Instruments and Controls for Mechanical (non-ECU) Engines and Irrigation Pumps
*Complete control panels*
	PowerCore® Controllers and Panels Also configurable for non-ECU engines, pumps and stationary/trailer equipment.
	33.400.689 (B0188) - the original Murphy irrigation pump controller
	B4111 - all the feaures of the 33.400.689 panel plus hourmeter and pre-punched apertures for pressure gauge throttling upgrades, in an IP65 lockable enclosure. B5001 - as model B4111 but without weatherproof enclosure, for mounting in an acoustic hood.
	WD series - general purpose indication and fault shutdown for stationary or mobile engines, pumps or PTO equipment.
*Pressure components*
	20P/25P - 2 inch and 2.5 inch mechanical Swichgage®, unrivalled accuracy and reliability for engine oil pressure monitoring and shutdown.
	20PHL, A25PHLK - pump discharge pressure Swichgage® with adjustable high and low contacts.
	20DP - pump differential pressure Swichgage®, for filter blockage warning or automatic backwashing.
	OPL - 4.5" panel-mount pressure Swichgage® with adjustable high/low contacts
	OPLC-DPCO - 4.5" Swichgage with DPCO contacts, for automatic pressure-driven throttle control .
	PD8183 - pressure pulsation dampener, to reduce gauge pointer flutter and pulsation damage.
*Temperature components*
	20T, 25T - high engine temperature Swichgage®. Available with a range of mechanical fittings.
*Fluid level*
	EL150K1 - low level Swichgage® for water, oil or fuel
	LM500(TF) - automatic oil level maintainer with sightglass and low level switch
	L129 - combination high/low fluid level Swichgage®.


*Controls & Actuators*
	Magnetic switches/Tattletales - engine control/shutdown.
	RP23xx series - push/pull fuel control solenoids, 12 or 24VDC, 1" or 1.5" stroke.
	RP75 - fuel rack puller.
	SV series - solenoid operated fuel valves.
	AT03069 - engine throttle controller.
	CO3 - automatic clutch operator.
	5T, 15T, 12T, 24T - engine run and fault-override-on-start timers, panel mounted or with lockable weatherproof case.
Fittings and accessories:
	Murphy offer a range of component spares, fitting, adaptors and hose connections for our irrigation control products. Please contact your local distributor for further information.
See also: Stationary equipment: irrigation & agricultural pumping Off highway vehicles: construction & mining
