Markets: Vehicle Technologies

Recreational Marine

Murphy and Enovation Controls equipment has a firm following in the recreational marine industry. We were pioneers in offering the latest CAN-based display, instrument and control systems, and have built strong partnerships with boat builders who need fully integrated, branded systems:

Boat builders get simplified systems and wiring, better reliability
and in-depth diagnostics, plus customized software and branding.
End-users get displays with consumer-grade graphics, features and connectivity.

And all our equipment is built to last, with best-in-class environmental protection against water ingress, temperature and shock/vibration.

Marine engine controls & instruments

Marine market specialist distributors >

Vehicle Technologies brochure >

Marine market brochure >

Click on the links below for recreational marine product data, or contact our engineers for application advice.

Displays:
For engines/vessels with CAN SAE J1939 and NMEA2000 data networks. All these displays include:

  • Ultra-bright, optically bonded LCDs: visible in direct sunlight
  • Compatibility with modern equipment ECUs and CAN networks, including J1939, NMEA2000 and proprietary protocols.
  • OEM customization using PowerVision Configuration Studio™
  • Class-leading environmental sealing and protection
PV350 monochrome marine display - click to enlarge PowerView PV350 and PV380 - 3.8" / 97mm QVGA monochrome display, with either (PV350) 2 CAN ports, or (PV380) 1 CAN port and additional I/O capability (e.g. for non-ECU engine or equipment sensors).
PV450 full colour engine & vehicle data display PowerView PV450 - 4.3" / 109mm WQVGA colour display with touch control option.
HVS450 full colour engine & vessel data display HelmView HV450 - 4.3" / 109mm WQVGA colour display with isolated CAN port. Supplied with a basic marine configuration.

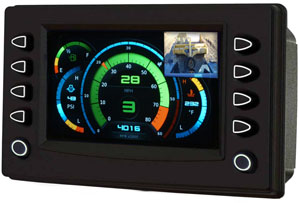

PV780 engine and vessel display PowerView PV780 - 7" / 178mm WVGA display with touch control option, removable bezel for front- or rear-mounting.

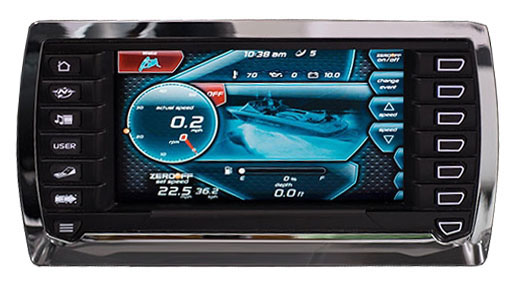

HelmView custom marine display Custom Displays & Systems - Need something more? Talk to us about how we can realize your dream displays, controls and infotainment systems: bespoke hardware and software to your exact specifications.

Gauges:
 - For CAN J1939 data networks:
PVCAN gauges for direct J1939 connection PVCAN series - Premium PowerView analogue gauges, displays J1939 engine data by direct connection to the CAN network. IP68 sealing, front and back, available with a range of parameter and bezel options.
PVA Premium gauges for PowerView displays PVA series - Premium PowerView analogue gauges and audible alarm, displays J1939 engine data via RS485 connection to PowerView displays. IP68 sealing, front and back.
PVM gauges for PowerView displays PVM series - Streamlined PowerView analogue gauges, displays J1939 engine data via RS485 connection to PowerView displays.
- For mechanical (non-ECU) engines:
EG21 / EGS21 series electric gauge for marine applications EG21 and EGS21 series - 2" electric gauge and Swichgage®, environmentally sealed, driven by resistive senders (including single senders for driving two gauges, engine-room and wheelhouse).

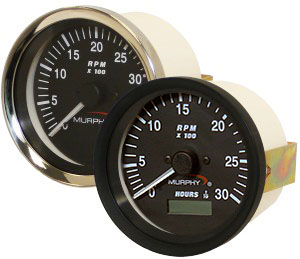

AT series analogue tachometers Tachometers - magnetic pickup pickup or alternator driven, analogue or digital readout, with optional hours run meters and limit switches.

Input/output modules: for interfacing electronic engine, ECU or CAN devices with analogue/switch input and output signals.

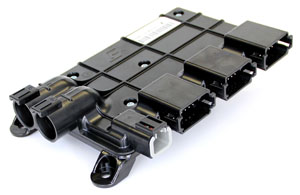

IX32 input/output and power distribution module IX3212 PDM - 32 channel, high-power input/output and power distribution module, fully integrated with HelmView or PowerView displays and PowerVision Configuration Studio®. For CAN integration of trim control, pumps and fans, lighting, sensors and more.

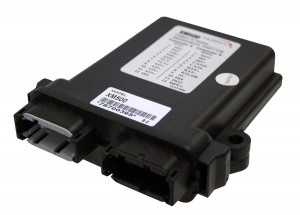

XM500 CAN J1939, input, output module XM500 - CAN/I/O module, max 11 inputs/2 outputs, customised to OEM requirements

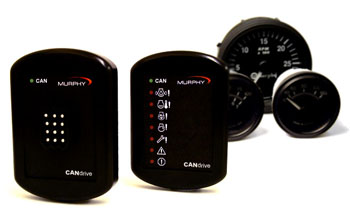

CANdrive J1939 to electric gauge interface CANdrive™ - Reads CAN J1939 data, then drives standard electric gauges and tachometer. Optional fault indication. May be used to integrate ECU-based engines into existing control systems, or to provide new, economical intrument solutions.
MeCAN MEC300 J1939 input output interface MeCAN™ - Converts analogue pressure, temperature and speed signals into CAN J1939 data. Intergrates older engines with the latest CAN-based displays and controls.
SenderCAN resistive sender or switch input to J1939 CANbus converter SenderCAN® - CAN/I/O module, max 4 inputs/2 outputs, customised to OEM requirements
GPS Speed control:
Zero Off display head Zero Off™ - accurate GPS-based speed control for wake board, tow-sport and stern drive boats. Supplied as a kit with display head, GPS-puck and wiring harness, or fully integrated into our custom displays above.
Fluid level control:
BLSK1 fluid level control BLSK1 - bilge level switch system. (Info from FW Murphy Production Controls at www.fwmurphy.com).
DF755 hydrostatic pressure fluid level switch DF series - hydrostatic head-pressure switches, for tank level control. (Info from FW Murphy Production Controls at www.fwmurphy.com).
Engine/vessel-mounted sensors and actuators:
ES2T pressure sender Sensors and limit switches: for pressure, temperature and speed.
RP2300 series push/pull solenoid Actuators: for mechanical engine fuel control.
SV series solenoid fuel valve Valves - solenoid and control valves for engine fuel
