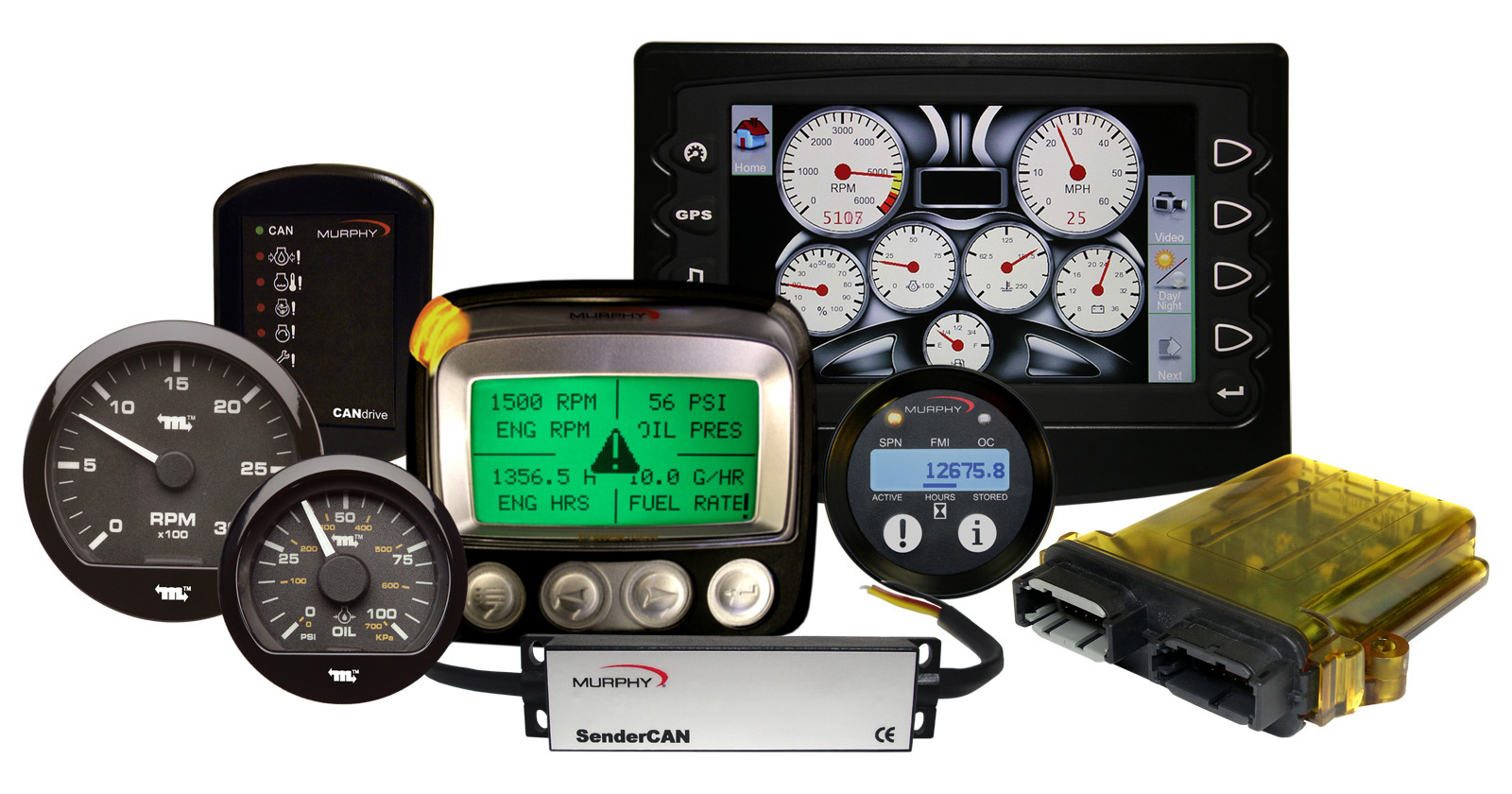

MurphyLink display, gauge and interface systems provide a window into the modern, electronically controlled engine. Most Electronic Control Units (ECUs) transmit diesel engine data and fault information using the SAE J1939 Canbus protocol: Murphy components can read this data and display it in terms the operator understands.

The MurphyLink system has taken a huge leap forward with the introduction of PowerView®, the next generation of J1939 instruments. Even more focus has been put into the operator interface: larger, brighter LCD graphic displays, analogue-style gauges with smooth pointer action and a choice of bezel designs/colours, all with class-leading environmental protection. Even better, PowerView® components feature “plug and go” convenience for easy installation, either as individual components or as complete panel solutions.

With years of experience, and close links with engine manufacturers, nobody knows more about J1939 CAN instrumentation than Murphy. Just what you’d expect from a company with a 75-year heritage in engine protection.

Displays, Industrial & Vehicle applications:

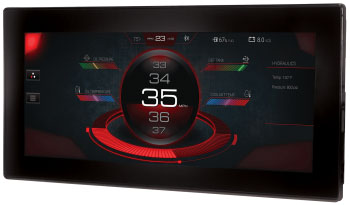

PowerView® PV1200
Pending 2017Q3 Release. 12.3 in. / 312 mm colour display for SAE J1939 or free-form CAN engines and vehicles. Front, back or gimble mounted, with touch-screen control. Full OEM configuration using PowerVision Configuration Studio®.

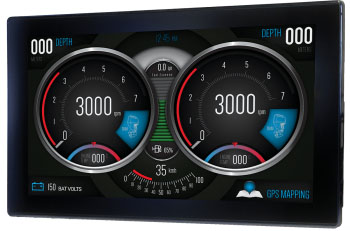

PowerView® PV1100
Pending 2017Q3 Release. 10.6 in. / 269 mm colour display for SAE J1939 or free-form CAN engines and vehicles. Front, back or gimble mounted, with touch-screen control. Full OEM configuration using PowerVision Configuration Studio®.

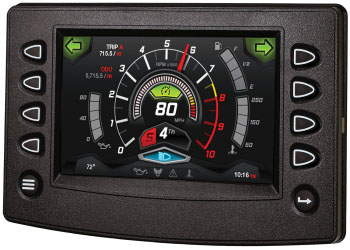

PowerView® PV780B
Pending 2017Q3 Release. 7"/178mm WVGA colour display for SAE J1939 or free-form CAN engines and vehicles. Front or back-mounted, with optional touch-screen control. Full OEM configuration using PowerVision Configuration Studio®.

PowerView® PV780
7"/178mm WVGA colour display for SAE J1939 or free-form CAN engines and vehicles. Front or back-mounted, with optional touch-screen control. Full OEM configuration using PowerVision Configuration Studio®.

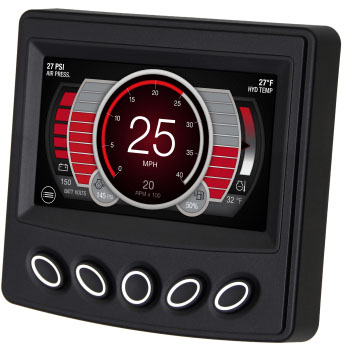

PowerView® PV485
Pending 2017Q3 Release. 4.3"/109mm WQVGA colour display for SAE J1939 or free-form CAN engines and vehicles. Full OEM configuration using PowerVision Configuration Studio®.

PowerView® PV450
4.3"/109mm WQVGA colour display for SAE J1939 or free-form CAN engines and vehicles. Full OEM configuration using PowerVision Configuration Studio®.

PowerView® PV380
3.8" / 97mm QVGA configurable monochrome display for J1939 engine applications, Tier 4/Stage IV compatible. 1 CAN port + I/O.

PowerView® PV350
3.8" / 97mm QVGA configurable monochrome displays for J1939 engine applications, Tier 4/Stage IV compatible. 2 CAN ports.

PowerView® PV101
Backlit, monochrome display for J1939 engine applications, now available with Tier 4/Stage IIIB engine DPF regen control.

PowerView® PV25
Diagnostic display for J1939 engines, Tier4- & Stage IIIB/IV-ready

Displays, Marine applications:

HelmView® HV(S)450
4.3 in./109mm WQVGA colour display for marine applications.

Analogue gauges:



PVCAN
Premium PowerView® analogue gauges, direct connection to CAN J1939 networks

PVA, PVAA
Premium PowerView® analogue gauges and audible alarm, displays CAN J1939 data via RS485 connection to PowerView® displays and panels

PVM
Streamlined PowerView® analogue gauges, displays CAN J1939 data via RS485 connection to PowerView® displays and panels

PVS-5
Power supply for PVM gauges.

Input/output and Power Distribution modules:

PowerCore® IX3212
Input/output and power distribution module for CAN J1939 systems

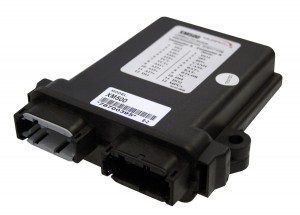

XM500
Configurable I/O module for J1939 / CAN systems

CANdrive™
Drives standard electric gauges and indicates faults, based on CAN SAE J1939 engine data.

MeCAN™
Mechanical engine sender/pickup to SAE J1939 converter module

FuelCAN™
Converts resistive fuel sender signals to SAE J1939 data

SenderCAN® Input / ouput (I/O) module for CANbus SAE J1939 engine systems
