Superseded by ML1000 and ML2000 controls panels

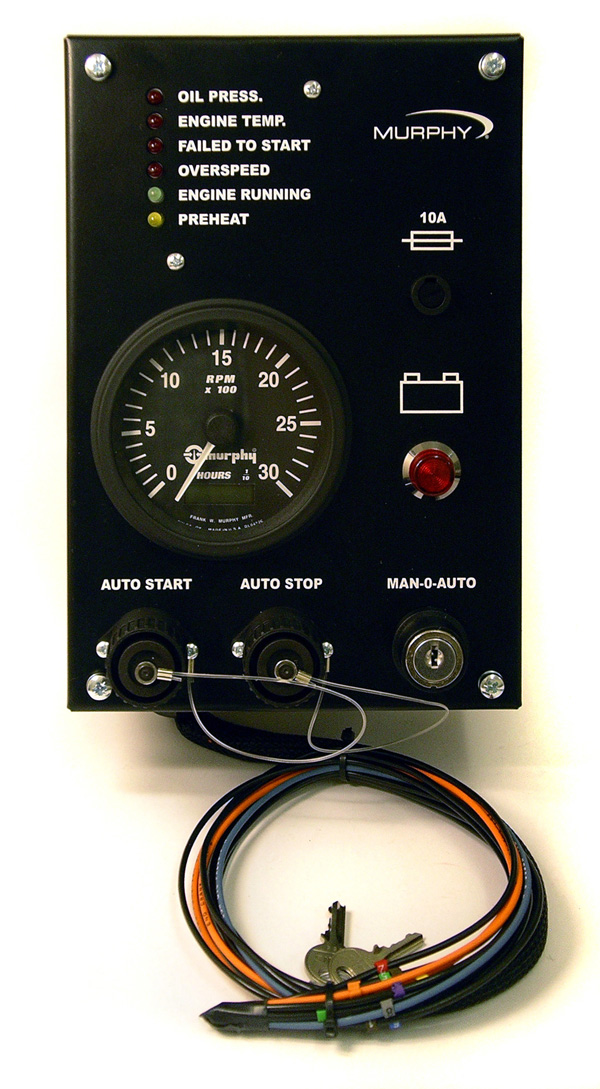

Pump control panel, automatic or manual start/stop

Features included:

• Weatherproof IP54 enclosure
• Manual-Off-Auto security keyswitch.
• Control and shutdown via customized ASM170 module, with user configurable timers.
• Connection to engine via integral 700mm wiring harness
• Connection to auto start / stop float switches by front facia IP68 connectors.
• Engine tacho/hourmeter.
• Charge alternator excitation/warning lamp
• Replaceable 10A DC supply fuse.

Archive literature:

• Sales bulletin (ss6414)
• Circuit diagram (se6448)
